Place of Origin: | China |
---|---|
Brand Name: | Feihuan |
Certification: | CE/ISO/FSC/FDA |
Model Number: | Starter G1 G2 G3 P1 P2 |
Minimum Order Quantity: | negotiatable |
Price: | negotiatable |
Packaging Details: | 6 pcs/packing , single & assorted 1800 packings per cartoon: 48cm*40cm*35cm |
Delivery Time: | 10-15 working days after received the payment |
Payment Terms: | T/T or western Union |
Supply Ability: | 500,000pcs per month10-15 working days after received the payment |
Product Name: | Eli Files Gold | Application: | Root Canal Treatment |
---|---|---|---|
Size: | Starter G1 G2 G3 P1 P2 | Length: | L21/25/31mm |
Taper: | 0.2/0.6/0.4 | Material: | NITI M-Wire Gold |
Standard: | CE/ISO/FSC/FDA | Packing: | 6pcs/packing |
Type: | Oral Therapy Equipments & Accessories | ||
Highlight: | reciprocating endodontic files,taper endodontic files |

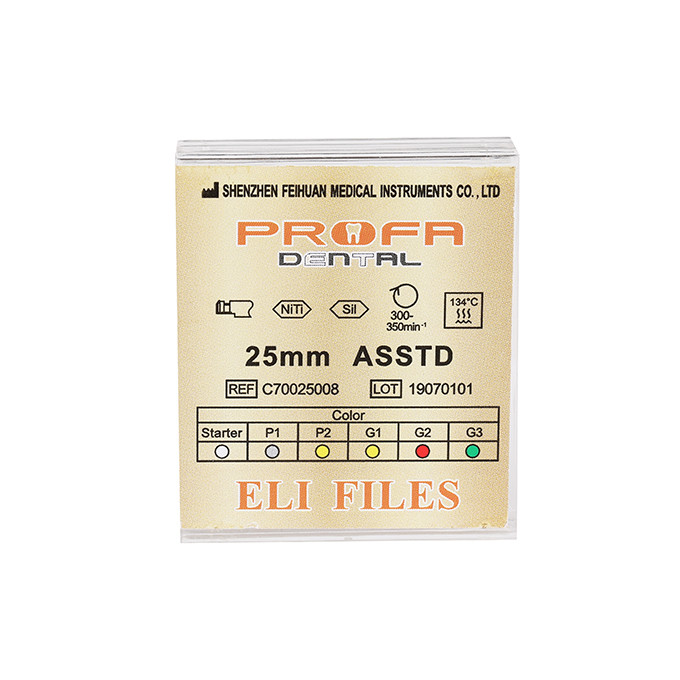

Simple use Endodontic Rotary File Eli Files Assorted Size For Root Canal Treatment ISO Color
Taper | Starter | 1.2 |
P1 | .02 | |
P2 | .02 | |
G1 | .04 | |
G2 | .06 | |
G3 | .04 | |
Torque | Starter | 3.0 N/CM |
P1 | 2.0 N/CM | |
P2 | 2.0 N/CM | |
G1 | 2.0 N/CM | |
G2 | 2.0 N/CM | |
G3 | 2.0 N/CM | |
Rotary Speed Range | Starter | 350 RMP |
P1 | 300 RMP | |
P2 | 300 RMP | |
G1 | 300 RMP | |
G2 | 300 RMP | |
G3 | 300 RMP | |
Size | Starter | #120 |
P1 | #16 | |
P2 | #19 | |
G1 | #20 | |
G2 | #25 | |
G3 | #35 | |
ISO Color | Starter | Yellow |
P1 | White | |
P2 | Yellow | |
G1 | Yellow | |
G2 | Red | |
G3 | Green | |
Using Times | Generally difficult root canals | 10-15 times |
Moderately difficult root canals | 8-10 times | |
Difficult root canals | 1-2 times | |
Cross Section | Triangle |
Operation Method
To adjust rotary speed and torque, turn on motor and use Eli files to achieve the working length, then replace files in order after 2-3 times up-and-down pulling.
Remark:Most of the root canals are usually completed preparing with G2. But if non-enough preparation after G2, be continued with G3.
Description:
For simple root canal:
Operation Sequence:
1. 1. Use 10 # or 15 # stainless steel hand use files to search and check root canals;
2. Use starter file to open the crown and upper-middle of the root canal;
3. Use 10 # or 15 # stainless steel hand use K files to search and check root canals until the WL;
4. Use G1,G2 to search until the WL;
5. Use G3 to repeat cutting until the WL for curved root canal;
6. Using sodium hypochlorite solution for fully flush when every file preparation is finished and use 10# or 15# K file to cut until the WL.
For complex root canal:
Operation Sequence :
1.Use K file (stainless steel) to search, prepare to extend the upper-middle
of root canal according to personal habits, or use #10 or #15 files in order to
operate.
2. Use starter file to prepare the upper-middle of root canal and build a
straight path to reach at middle-lower of root canal;
Use 10# or 15# stainless steel K file to search the middle-lower of root
canal to confirm the working length, then use P1(02/16#),P2(02/19#)
to smooth the root canal until the working length
3. Use the series of G files Successively to prepare the root canal to the
working length:G1(04/20#),G2(06/25#),G3(04/35#)
