Place of Origin: | China |
---|---|
Brand Name: | Feihuan |
Certification: | CE/ISO/FDA/FSC |
Model Number: | Small,Primary, Large |
Minimum Order Quantity: | negotiatable |
Price: | negotiatable |
Packaging Details: | 3 pcs/packing , single & assorted ,packed in box then carton 1800packings per cartoon: 48cm*40cm*35cm |
Delivery Time: | 10-15 working days after received the payment |
Payment Terms: | T/T, MoneyGram, Western Union |
Supply Ability: | 500,000 pcs / month |
Product Name: | Wave Gold Engine(WaveOne Compatible) | Size: | 20 |
---|---|---|---|
Taper: | .06 | Standard: | CE/ISO/FDA/FSC |
Application: | Root Canal Treatment | Length: | L21/25/31mm |

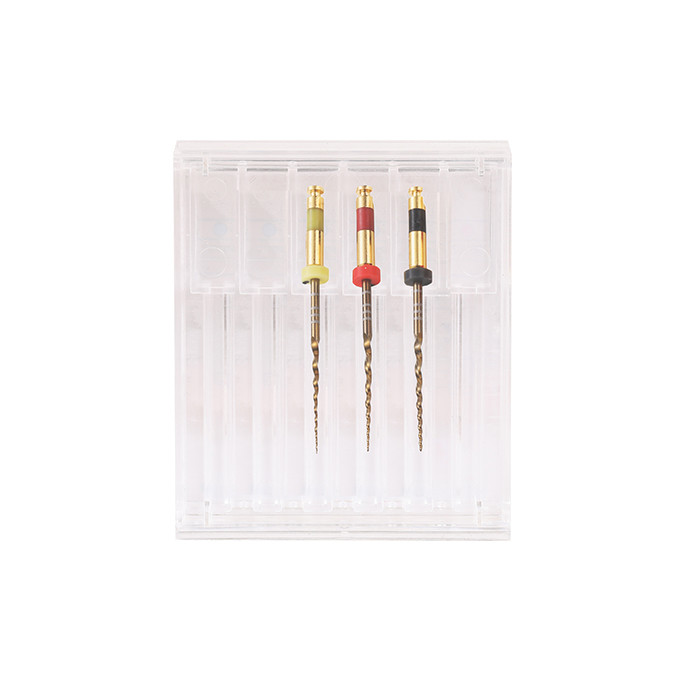

Material: | NITI M-Wire | Packing: | 3 Pcs/packing |
Highlight: | dental endodontic instruments,endo edge rotary files |

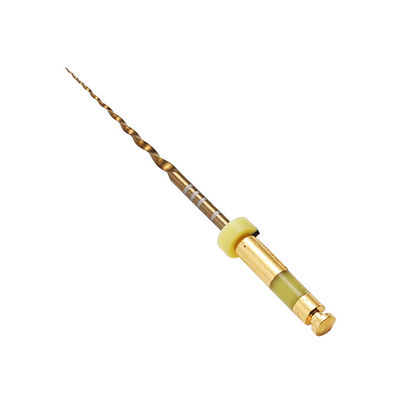

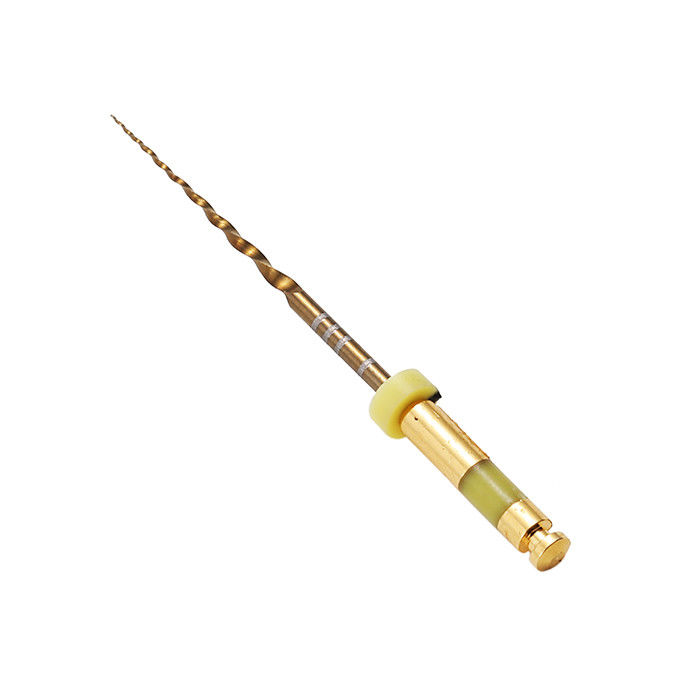

NITI Wave Gold Engine use Reciprocating Endo Files ISO yellow color with Reverse Cutting Design
Description:
Wave Gold reciprocating root canal file,unique double-edged design,improved the security and life time in clinical operation.Reverse cutting design improved the flexibility and safety of the instruments.
Advantage:
1.Increase Patient safety;
2.Optimized file tip;
3.Matching obturation;
4.One complete solution.
Operation Sequence:
Need to take X-ray film for apical root canal before preparation, which could display the thickness , length , quantity and curved situation of root canals . the usage of K file help to select the appropriate size of Wave as follows:
Using the 1 0 # K file to the apical of root canal if u could feel slight friction sense , please choose 20 # when preparation .
Using the 10 # K file could easily to the apical of root canal without any sense of friction , please choose 25 # when preparation .
Using 2 0 # K file to the apical of root canal if any slight friction sense , please choose 40 # when preparation .
Specifications:
Size | Taper | Torque | Rotary Speed Range | ISO Color | Using Times | Cross Section |
20 | 0.06 | 3.55 N/CM | 250-350 RMP | Yellow | 8-10 times | Triangle |
25 | 0.08 | 3.55 N/CM | 250-350 RMP | Red | 10-12 times | Triangle |
40 | 0.08 | 3.55 N/CM | 250-350 RMP | Black | 10-12 times | Triangle |
Structure
20 for thin root canals, diameter of tip is ISO 20# ,continuous taper 6%
25 for most root canals,diameter of tip is ISO 25# ,continuous
taper 8%,descending to the crown part.
40 for big root canals, diameter of tip is ISO 40# ,continuous
taper 8%,descending to the crown part.
Counterclockwise is 170°, Clockwise is 50°,
The cutting section of tip part is improved, the middle handle is convex triangle, with three cutting grooves ,and larger area with root canal
Competitive Advantage:
Reciprocating system for root canal , unique double-edge design ,strongly increase operating safety and life time . Reverse cutting design improves the flexibility and safety of the device.
